EVPN-ETREE over ISIS-SR with TI-LFA: Rooted Multipoint L2 Service on OcNOS

EVPN E-Tree (Ethernet Tree) is a specialized multipoint Layer 2 service that enforces a root-and-leaf traffic hierarchy. While E-LAN allows any-to-any communication between all sites, E-Tree restricts leaf-to-leaf communication — traffic can only flow between root and leaf sites, never directly between two leaf sites. This makes E-Tree ideal for wholesale broadband aggregation, mobile backhaul, and managed service deployments where customer isolation is required.

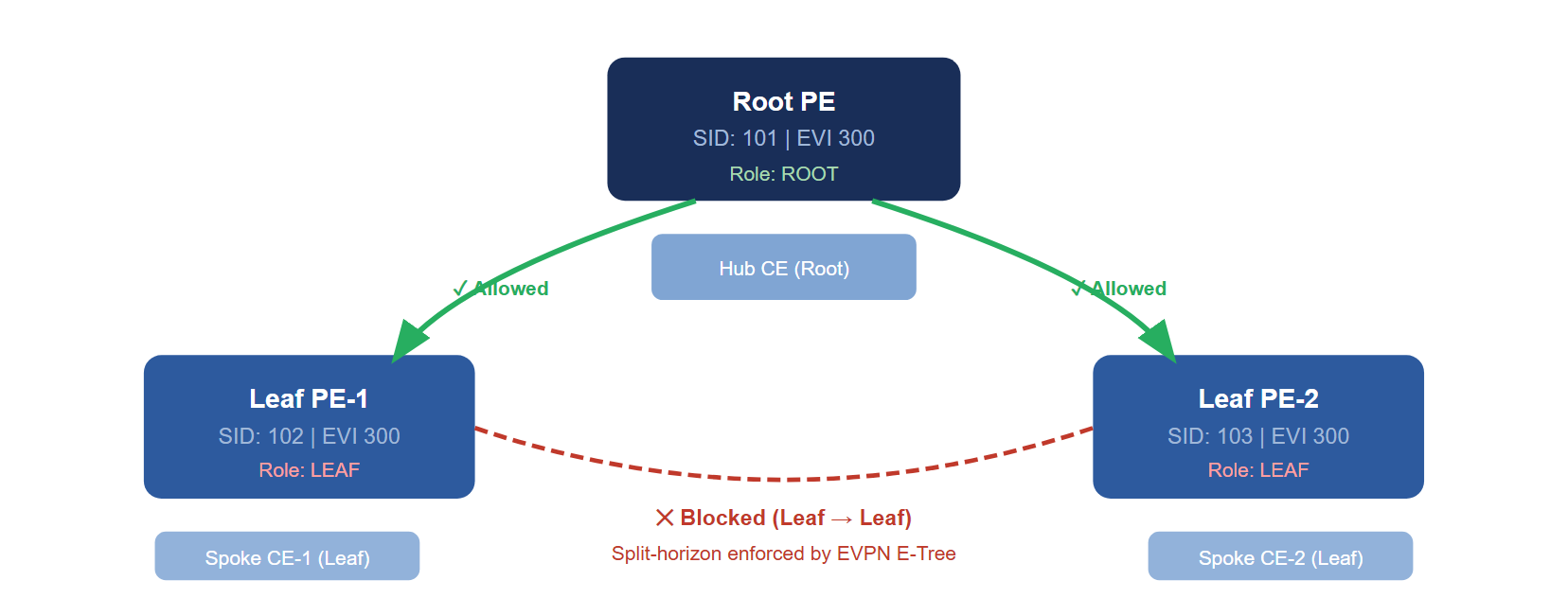

E-Tree Traffic Model

EVPN-ETREE Use Cases

• Wholesale broadband aggregation — ISP connects subscriber sites (leaves) to a central gateway (root) while ensuring subscribers cannot communicate directly with each other
• Mobile backhaul — Cell sites (leaves) connect to a central packet core (root) with strict isolation between base stations
• Managed enterprise services — Branch offices (leaves) connect to headquarters (root) in a hub-and-spoke topology

EVPN-ETREE Configuration on OcNOS

! OcNOS -- Root PE: EVPN E-Tree root role
!
! Step 1: ISIS-SR underlay (standard)
router isis CORE
  net 49.0001.0000.0000.0001.00
  is-type level-2-only
  segment-routing mpls
  fast-reroute per-prefix level-2 ti-lfa
  address-family ipv4 unicast
    segment-routing mpls
  exit-address-family
!
! Step 2: BGP EVPN
router bgp 65001
  bgp router-id 10.0.0.1
  neighbor 10.0.0.2 remote-as 65001
  neighbor 10.0.0.2 update-source lo
  neighbor 10.0.0.3 remote-as 65001
  neighbor 10.0.0.3 update-source lo
  !
  address-family l2vpn evpn
    neighbor 10.0.0.2 activate
    neighbor 10.0.0.3 activate
  exit-address-family
!
! Step 3: EVPN E-Tree instance -- ROOT role
l2vpn evpn
  instance 300 vlan-based
    rd 65001:300
    route-target import 65001:300
    route-target export 65001:300
    !
    evi 300
      encapsulation mpls
      etree root                         ! This PE is the root
!
! Step 4: Root CE-facing interface
interface eth-0-1
  l2vpn evpn evi 300
  encapsulation dot1q 300

! OcNOS -- Leaf PE-1: EVPN E-Tree leaf role
! (Leaf PE-2 mirrors this configuration)
!
l2vpn evpn
  instance 300 vlan-based
    rd 65001:300
    route-target import 65001:300
    route-target export 65001:300
    !
    evi 300
      encapsulation mpls
      etree leaf                         ! This PE is a leaf
      ! Leaf role automatically enforces split-horizon:
      ! traffic received from one leaf will NOT be forwarded to other leaves
!
! Leaf CE-facing interface
interface eth-0-1
  l2vpn evpn evi 300
  encapsulation dot1q 300

Multi-Homed Leaf Configuration

! OcNOS -- Multi-homed leaf: two PEs share the same ESI
! Both PE-1 and PE-2 are leaves; CE is dual-homed for redundancy
!
evpn
  ethernet-segment 2
    identifier 0200:0000:0000:0001:0000
    multihoming-mode single-active       ! One PE forwards at a time
  !
!
interface bond0
  evpn ethernet-segment 2
  l2vpn evpn evi 300
  encapsulation dot1q 300

Verification

! OcNOS -- EVPN E-Tree verification
!
! Confirm root/leaf roles are correctly set:
show evpn evi detail
! Output should show: etree-role: root (or leaf)
!
! Verify split-horizon is active (leaf-to-leaf forwarding blocked):
show evpn ethernet-segment detail
!
! Check BGP E-Tree route community (carries root/leaf role information):
show bgp l2vpn evpn route type mac-ip detail
! Look for: E-Tree Route Community in extended community attribute
!
! Test traffic: hub CE should reach both spoke CEs
! Spoke CE-1 should NOT be able to ping spoke CE-2
