OcNOS® Packet Optical Transponder Solution

High Capacity open modular transport platform with industry leading OcNOS Network Operating System

Download Data Sheet Download App Note Read Announcement

OcNOS on modular packet transponder systems based on open specifications combines best-in-class software, open network switch and coherent modules with a data center operations model for cost-effective, web-scale Data Center Interconnect (DCI) and mobile backhaul transport applications.
OcNOS-OTN offers a cost-effective solution for rolling out 100G services or increasing existing network capacity. The open networking platform has up to eight 200G pluggable drawers and pluggable optical modules, delivering up to 1.6T in a 1U or 1.5U chassis, and enabling pay-as-you grow architecture.

Packet Transponder Use Cases

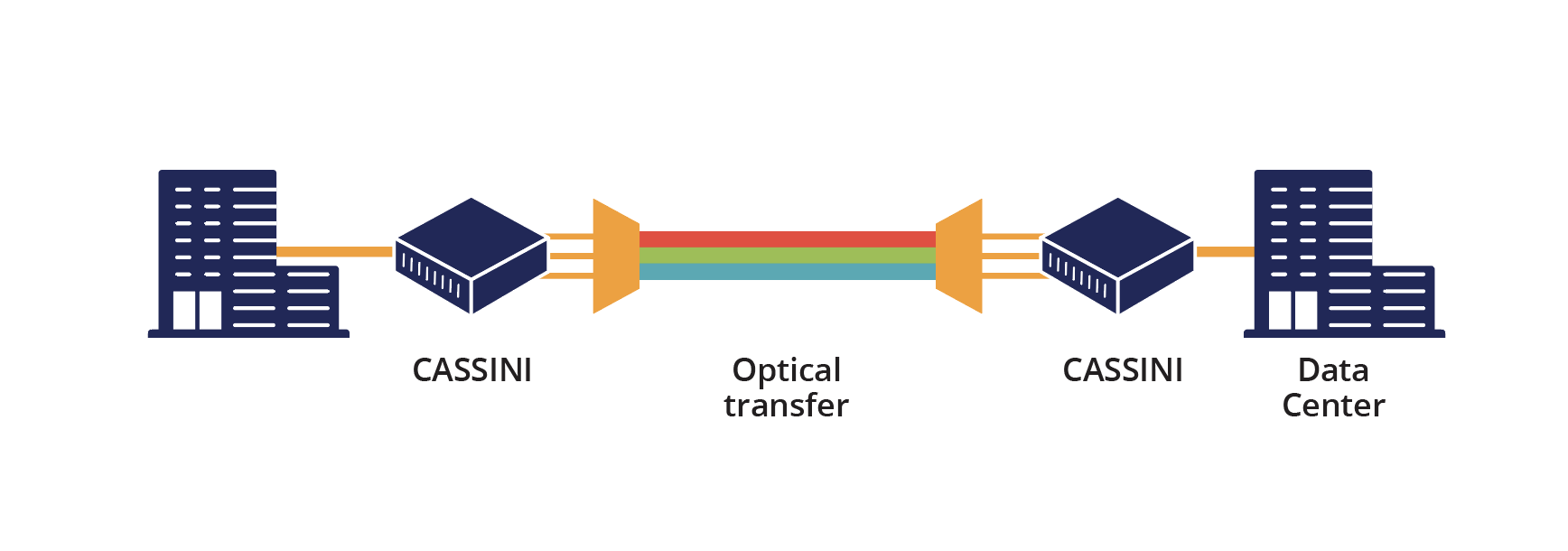

• Data Center Interconnect

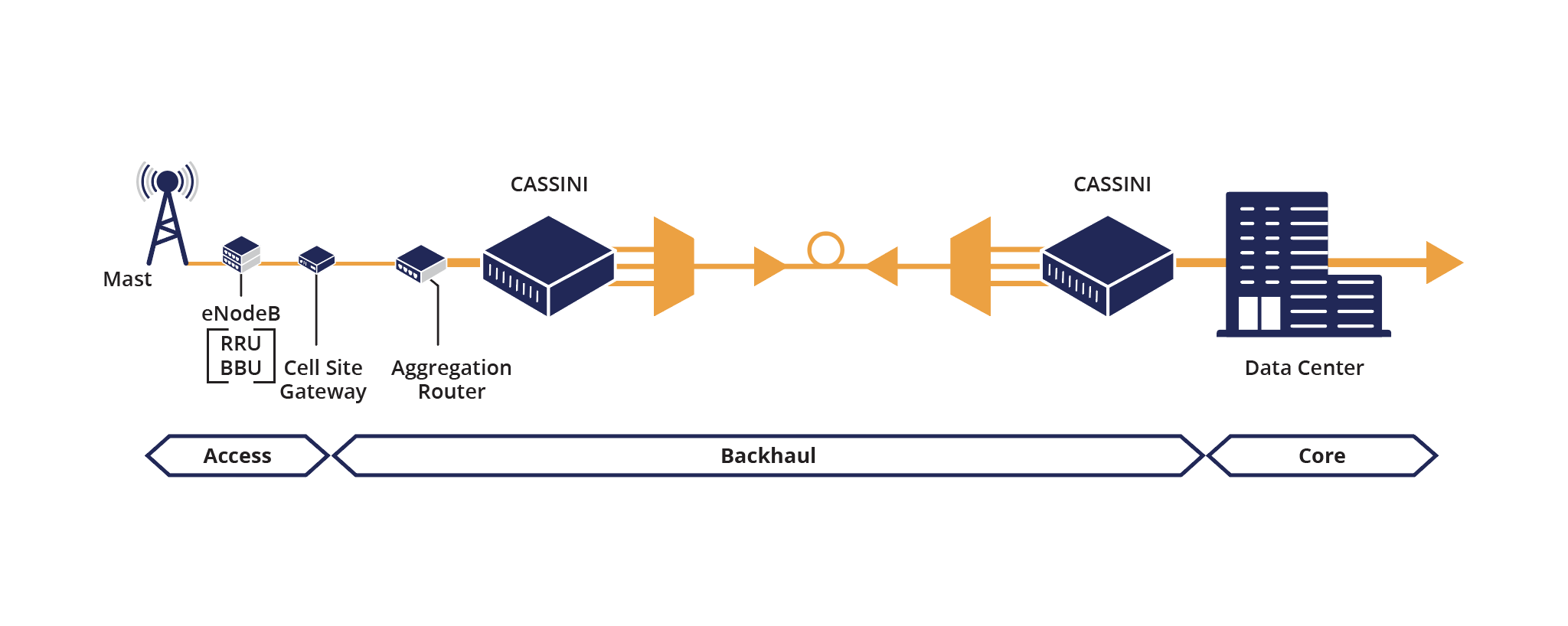

• Backhaul of access edge services

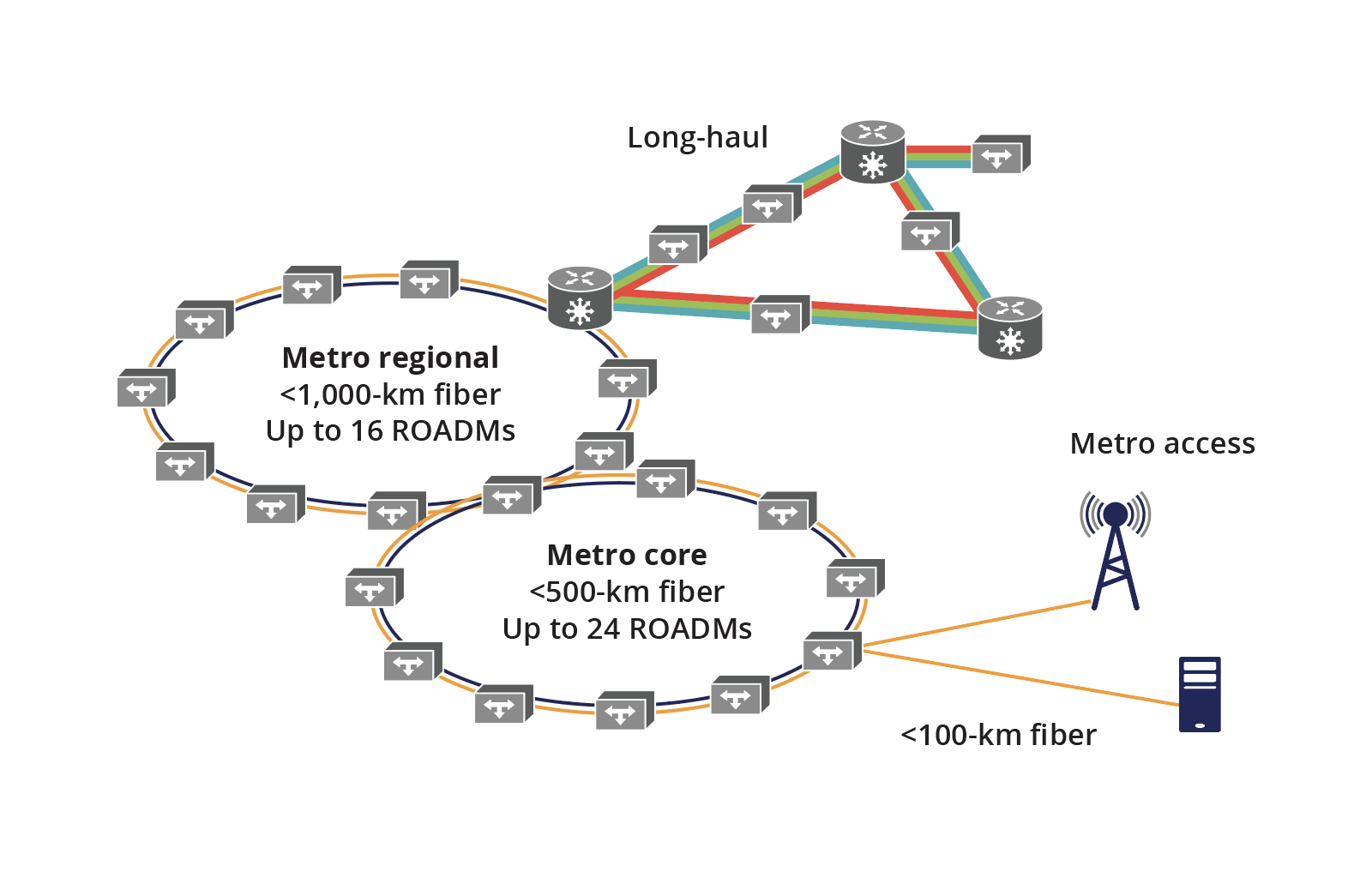

• Metro Ethernet services

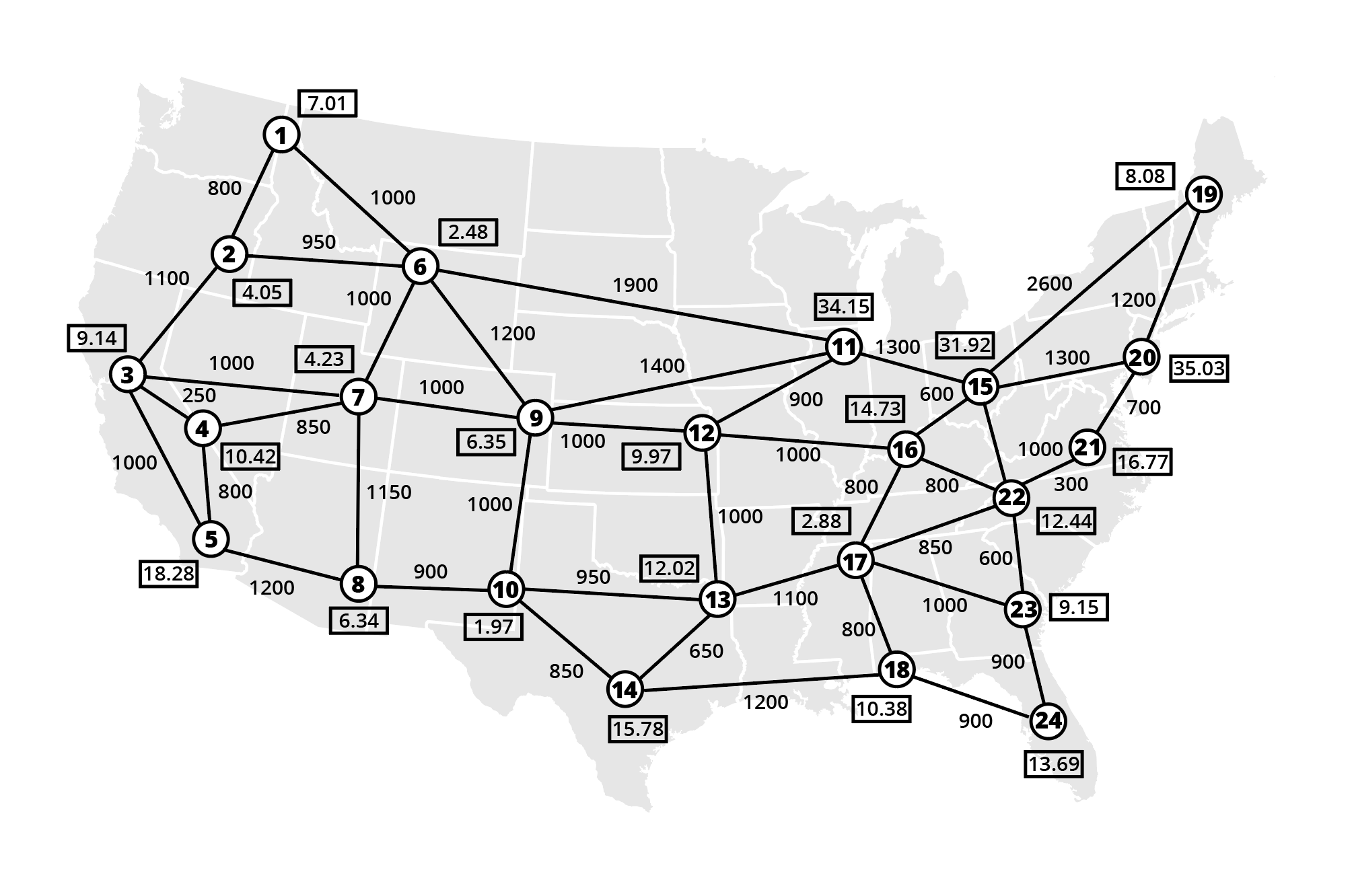

• Long haul using ACO with appropriate DSP

Features and Benefits

  • Supports both CFP2 ACO and DCO with flexible modulation: QPSK, 8QAM, and 16QAM for the highest capacity, from metro and regional to long-haul requirements
  • Provides a new business and operational experience for deploying web-scale DCI solutions– with simplified planning, ordering, installation, operation, and maintenance
  • Zero-Touch Provisioning (ZTP) simplifies onsite commissioning and service provisioning to get traffic up and running quickly
  • Provides open APIs for automation, provisioning, and management programmability
  • Open API to configure/manage optical modules: Transponder Abstraction Interface (TAI) significantly reduces network systems development and integration of optical subsystems and modules from months to weeks allowing faster time to market and deployment.
