Deploying VPLS on OcNOS: Step-by-Step Configuration Guide

Virtual Private LAN Service (VPLS) is one of the most widely deployed Layer 2 VPN technologies in service provider networks. While EVPN has become the modern successor, VPLS remains in active production across thousands of service provider deployments worldwide. Understanding how to configure and verify VPLS on OcNOS is essential for network engineers working in brownfield SP environments.

This guide builds a complete VPLS deployment from the ground up: OSPF underlay, LDP label distribution, and VPLS pseudowire configuration, with verification commands at each stage.

Network Topology

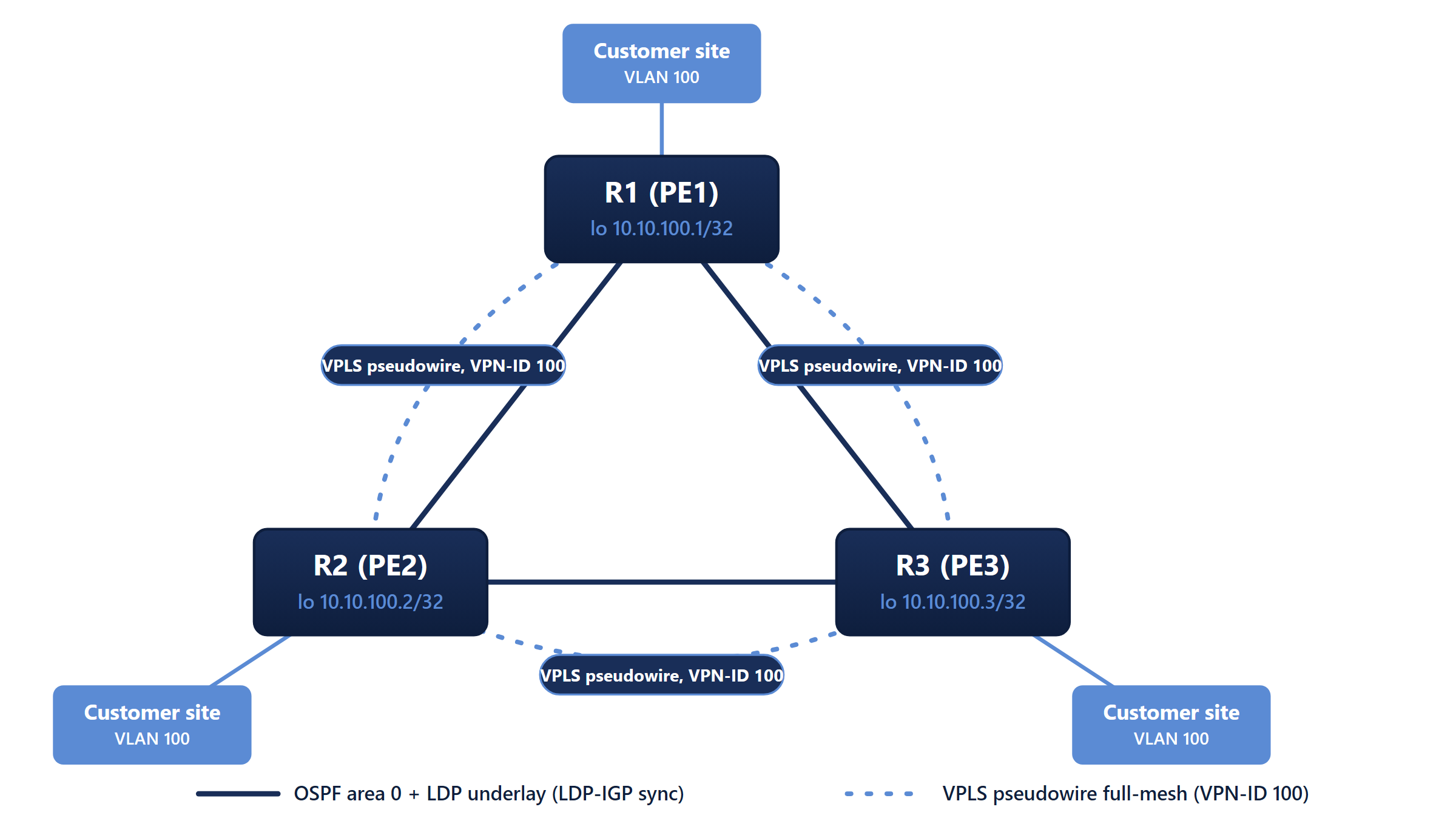

OcNOS VPLS: PEs R1, R2, R3 (loopbacks 10.10.100.1/.2/.3) on OSPF area 0 + LDP underlay, full-mesh VPLS pseudowires VPN-ID 100, VLAN 100 customer sites.
A three-PE VPLS deployment on OcNOS. R1, R2 and R3 run an OSPF area 0 and LDP underlay with LDP-IGP synchronization, and carry a full mesh of targeted-LDP pseudowires (VPN-ID 100) that bridge the VLAN 100 customer sites attached to each PE.

Step 1: Configure OSPF Underlay

OSPF provides the IP reachability between PE routers. On OcNOS, enable OSPF with network statements under the process, set the core links to point-to-point (this eliminates DR/BDR election), and mark the loopback passive. The core interface also carries MPLS, so label-switching and per-interface LDP are enabled on it as well.

! OcNOS: OSPF underlay on R1 (all PEs use the same config pattern)
!
router ospf 1
 router-id 10.10.100.1
 passive-interface lo enable
 network 10.10.100.1/32 area 0.0.0.0
 network 192.168.12.0/24 area 0.0.0.0
 network 192.168.13.0/24 area 0.0.0.0
!
interface ce0
 ip address 192.168.12.1/30
 mtu 9216
 label-switching
 mpls ldp-igp sync ospf holddown-timer 30
 ip ospf network point-to-point
 enable-ldp ipv4
!
interface lo
 ip address 127.0.0.1/8
 ip address 10.10.100.1/32 secondary
 ipv6 address ::1/128
!
commit
!
! Verify OSPF neighbors:
show ip ospf neighbor
! Expected: R2 and R3 in FULL state
!
! Verify loopback reachability to the remote PEs:
show ip route ospf

Step 2: Enable LDP for Label Distribution

LDP binds MPLS labels to OSPF-learned prefixes, building the Label Switched Paths (LSPs) that VPLS pseudowires ride over. On OcNOS the LDP process is configured under router ldp, and LDP is turned up on each core link with enable-ldp ipv4 alongside label-switching (both already shown on interface ce0 in Step 1).

! OcNOS: LDP configuration on R1
!
router ldp
 router-id 10.10.100.1
 transport-address ipv4 10.10.100.1
!
commit
!
! Per-interface LDP is enabled on the core links (see interface ce0 in Step 1):
!   label-switching
!   enable-ldp ipv4
!
! Verify LDP session state (R2 and R3 should be OPERATIONAL):
show ldp session
!
! Verify the label-switched paths to the PE loopbacks:
show mpls forwarding-table

Step 3: Configure VPLS

VPLS creates a virtual Ethernet switch across the MPLS network. Each PE maintains LDP-signaled pseudowires to all other PEs in the VPLS instance, forwarding frames based on MAC learning, exactly like a physical Ethernet switch, but over MPLS. On OcNOS the instance is defined globally with mpls vpls <name> <vpls-id>, LDP signaling and each remote PE are declared inside it, and the CE-facing access port is bound with mpls-vpls <name>.

! OcNOS: VPLS configuration on R1
! VPLS-ID 100 connects CE-A (R1), CE-B (R3) and CE-C (R2) in one L2 broadcast domain
!
mpls vpls VPLS100 100
 signaling ldp
 !
 ! Pseudowire to R2 (PE2)
 vpls-peer 10.10.100.2
 !
 ! Pseudowire to R3 (PE3)
 vpls-peer 10.10.100.3
!
! Bind the CE-facing access port into the VPLS instance
interface ce2
 access-if-vpls mpls-vpls VPLS100
!
commit
!
! Verify the VPLS instance and pseudowire status:
show mpls vpls
! Expected: both peers UP (VC Type: Ethernet)
!
! Verify the VC table and assigned VC labels:
show mpls vc-table

Step 4: Verify End-to-End Connectivity

! OcNOS: End-to-end VPLS verification
!
! Confirm the MPLS forwarding entry toward a remote PE:
show mpls forwarding-table
!
! Confirm the VPLS instance and both pseudowires are up:
show mpls vpls
!
! Confirm the VC table shows both peers with assigned VC labels:
show mpls vc-table
!
! Confirm the LDP-signaled L2 circuit to each remote PE:
show ldp mpls-l2-circuit

VPLS vs. EVPN: When to Use Each

기능 VPLS EVPN
MAC learning Data plane (flooding) Control plane (BGP)
멀티 호밍 Complex (H-VPLS) Native (EVPN MH)
BUM traffic Flood-and-learn Selective multicast
Fast convergence Limited Mass withdrawal + aliasing
L3 integration Separate L3VPN needed EVPN IRB (native)
Brownfield fit Excellent Good (with SR underlay)

VPLS remains the right choice for brownfield deployments where EVPN migration is not yet planned. For new deployments, EVPN-ELAN delivers the same multipoint L2 service with superior scalability and faster convergence.


IP Infusion Engineering Team
